Strategy

Author      Ter-Petrosyan Hakob

The Strategy pattern is a behavioral design pattern. It helps you choose one of many ways (algorithms) to do a task at runtime. This makes your code more flexible and easier to change.

Strategy pattern is also known as Policy Pattern. We define multiple algorithms and let the client application pass the algorithm to be used as a parameter. One of the best examples of the Strategy pattern is Java’s Collections.sort() method, which takes a Comparator parameter. Depending on the implementation of Comparator, objects are sorted in different ways.

Simple Example

Imagine a calculator that can add or multiply numbers. We use Strategy so the calculator can switch between addition and multiplication.

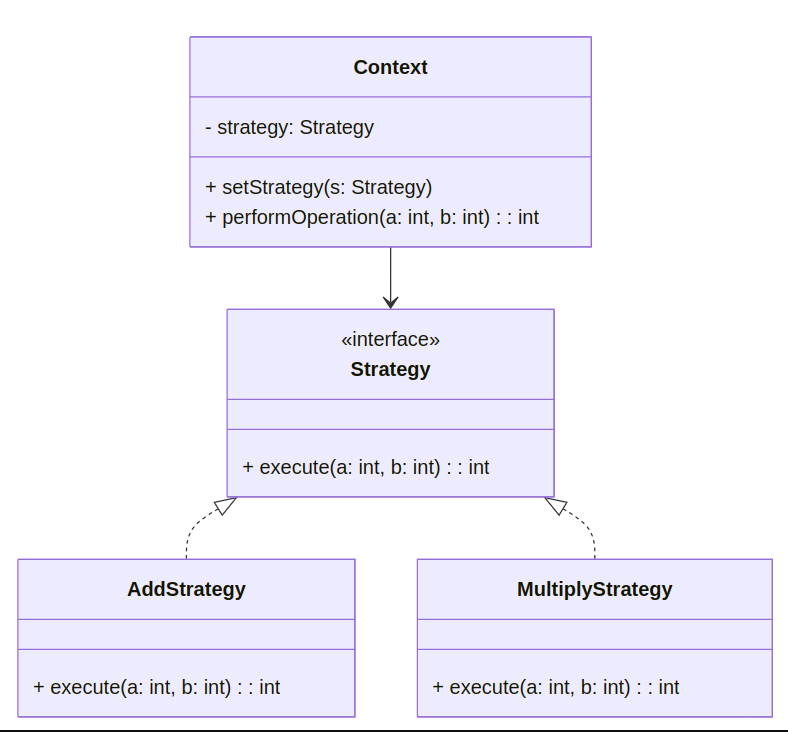

Diagram

Code

// Strategy interface
public interface Strategy {
    int execute(int a, int b);
}

// Concrete Strategy 1: Addition
public class AddStrategy implements Strategy {
    @Override
    public int execute(int a, int b) {
        return a + b;
    }
}

// Concrete Strategy 2: Multiplication
public class MultiplyStrategy implements Strategy {
    @Override
    public int execute(int a, int b) {
        return a * b;
    }
}

// Context class
public class Context {
    private Strategy strategy;

    // Set the strategy at runtime
    public void setStrategy(Strategy strategy) {
        this.strategy = strategy;
    }

    public int performOperation(int a, int b) {
        if (strategy == null) {
            throw new IllegalStateException("Strategy not set");
        }
        return strategy.execute(a, b);
    }
}

// Client code
public class Main {
    public static void main(String[] args) {
        Context ctx = new Context();

        // Use addition
        ctx.setStrategy(new AddStrategy());
        System.out.println("10 + 5 = " + ctx.performOperation(10, 5));

        // Switch to multiplication
        ctx.setStrategy(new MultiplyStrategy());
        System.out.println("10 × 5 = " + ctx.performOperation(10, 5));
    }
}

Output:

10 + 5 = 15
10 × 5 = 50

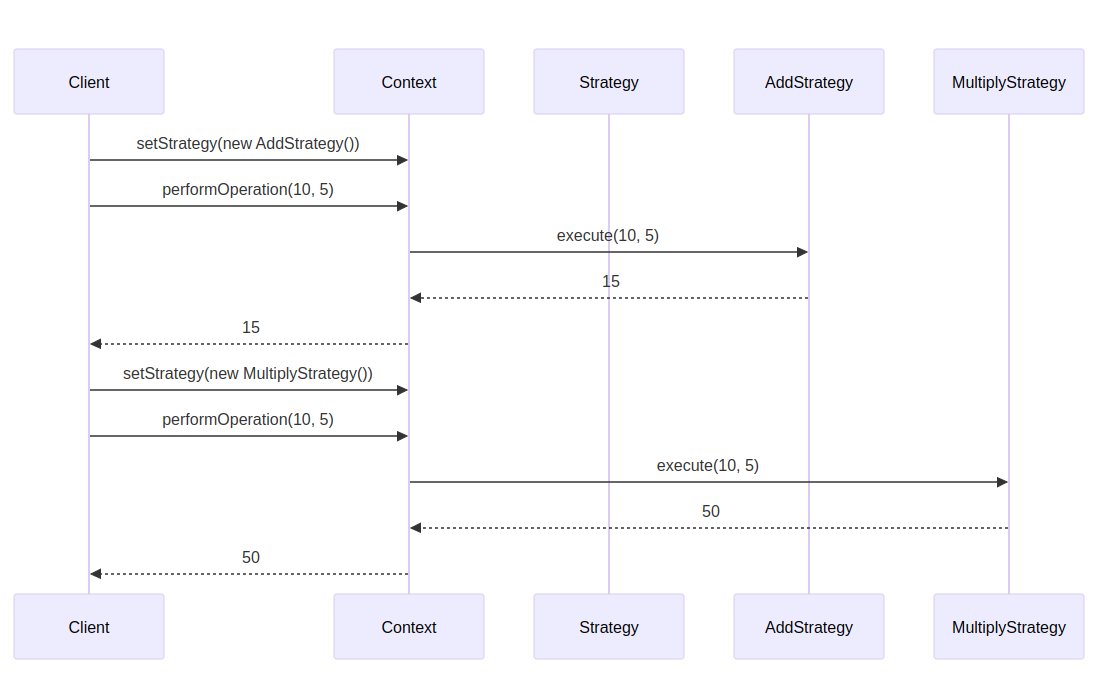

Sequence Diagram

Key Terms

Strategy: An interface that defines a method for the algorithm.
Concrete Strategy: Classes that implement the strategy interface with different algorithms.
Context: A class that uses a Strategy object to run the algorithm.

When to Use

Multiple algorithms: You have two or more ways to do something.
Switch at runtime: You want to choose the method while the program runs.
Clean code: You want to avoid many if statements.

Pros&Cons

Pros:

Easy to add new algorithms
No big if or switch statements
Follows Open/Closed Principle (OCP)

Cons:

More classes in the code
Client must know all strategy classes
Can overcomplicate simple tasks

Factory Method: Create strategy objects.
Template Method: Define steps in a base class, not with separate objects.
State: Similar structure but changes object state rather than algorithm.
