Inheritance

Author      Ter-Petrosyan Hakob

Since the first object‑oriented languages appeared, programmers have used inheritance to share code. With inheritance, one class (the child) takes properties and behavior from another class (the parent). While it’s easy to map simple object relationships to database tables, inheritance does not match directly to a flat, relational design.

When you save an inheritance hierarchy in a relational database, you must choose how to organise your tables. JPA offers three strategies:

Tip: The “TABLE_PER_CLASS” strategy is optional in JPA 2.2. To keep your application portable, it’s safer to stick with either the SINGLE_TABLE or JOINED strategies.

Every inheritance setup in JPA starts with a root entity. This root class tells JPA which strategy to use. You do this by adding the @Inheritance annotation and setting its strategy value to one of the options in javax.persistence.InheritanceType. If you skip this step, JPA will choose the InheritanceType.SINGLE_TABLE hierarchy by default.

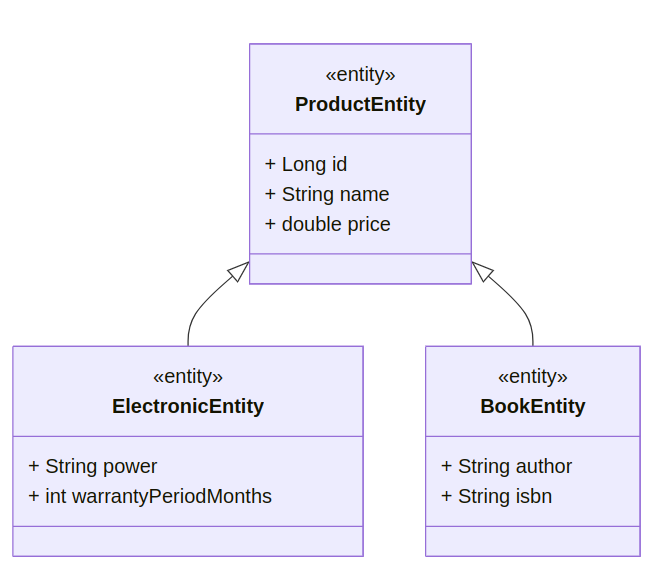

To see how each strategy works, we’ll map two child entities—Electronic and Book—both of which extend the Product entity.


SINGLE_TABLE

JPA uses the SINGLE_TABLE strategy by default. With this approach, every class in the inheritance hierarchy is stored in the same database table. Because it’s the default, you don’t need to add the @Inheritance annotation on the root entity—JPA will pick SINGLE_TABLE automatically.

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "products")
public class ProductEntity {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    private double price;
}

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "books")
public class BookEntity extends ProductEntity {
    private String author;
    private String isbn;
}

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "electronics")
public class ElectronicEntity extends ProductEntity {
    private String power;
    @Column(name = "warranty_period_months")
    private int warrantyPeriodMonths;
}

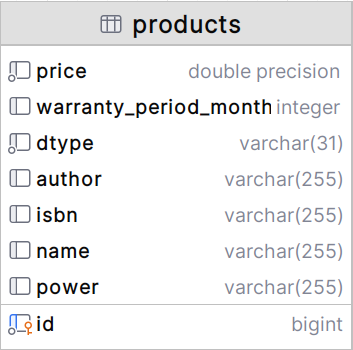

In the SINGLE_TABLE strategy, JPA stores every class in one table—here, the products table. This table has:

When you save data, each row in products represents either a general product, an electronic, or a book. The dtype column holds a simple label (for example, Product, Electronic, or Book) so that when JPA reads a row, it knows which Java class to create.

Here is a fragment of the products table. Notice that for simple products (first three rows), only name and price are filled; the other columns remain empty.

id name price power warranty_period_months author isbn dtype
1 Basic Product 10.00         ProductEntity
2 Standard Item 20.50         ProductEntity
3 Sample Product 15.75         ProductEntity
4 Gaming Laptop 1200.00 150W 24     ElectronicEntity
5 Java Programming 35.00     Jane Smith 978-1234567890 Book

You can see the “holes” where columns are unused for a given entity type.

By default, JPA adds a column named DTYPE. This column is a VARCHAR and holds the name of each entity for every row. If you want a different column name or data type, put @DiscriminatorColumn on the root entity. With this annotation you can set a new column name (for example, product_type) and choose a type like CHAR. Normally, JPA writes the Java class name in that column, but you can change it with @DiscriminatorValue on each subclass. In the code example below, we:

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "products")
@DiscriminatorValue("P")
@DiscriminatorColumn(name = "product_type", discriminatorType = DiscriminatorType.CHAR)
@Inheritance(strategy = InheritanceType.SINGLE_TABLE)
public class ProductEntity {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    private double price;
}


@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "books")
@DiscriminatorValue("B")
public class BookEntity extends ProductEntity {
    private String author;
    private String isbn;
}


@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "electronics")
@DiscriminatorValue("E")
public class ElectronicEntity extends ProductEntity {
    private String power;
    @Column(name = "warranty_period_months")
    private int warrantyPeriodMonths;
}

By default, JPA uses the SINGLE_TABLE strategy. In this strategy, all classes in the inheritance hierarchy share one table. It is easy to understand and works well when your class hierarchy is small and does not change often.

However, there are some drawbacks:

JOINED

With the JOINED strategy, each class in your inheritance hierarchy gets its own database table:

To enable this strategy, add the annotation to your root entity:

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "products")
@DiscriminatorValue("P")
@DiscriminatorColumn(name = "product_type", discriminatorType = DiscriminatorType.CHAR)
@Inheritance(strategy = InheritanceType.JOINED)
public class ProductEntity {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    private double price;
}

You do not need to change ElectronicEntity or BookEntity—they remain exactly as before.

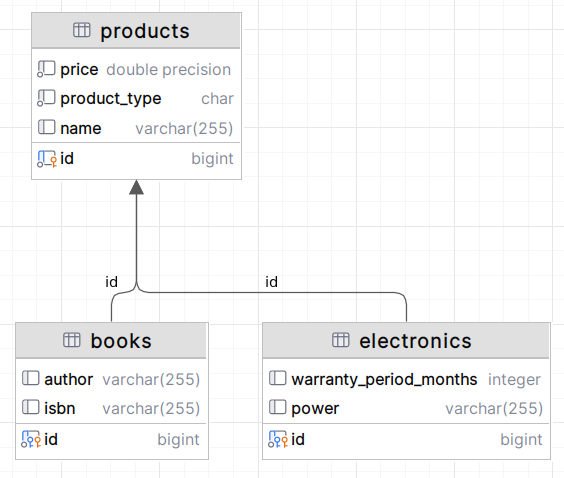

Below is the SQL code that Hibernate generated for the three tables using the JOINED strategy:

create table products
(
    id           bigint           not null primary key,
    price        double precision not null,
    product_type char             not null,
    name         varchar(255)
);

create table books
(
    id     bigint not null primary key constraint fk9j4... references products,
    author varchar(255),
    isbn   varchar(255)
);

create table electronics
(
    warranty_period_months integer,
    id                     bigint not null primary key constraint fk9ap... references products,
    power                  varchar(255)
);

You can still use @DiscriminatorColumn and @DiscriminatorValue on the root entity to change the name and values of the discriminator column. The JOINED strategy feels natural because each class has its own table, just like in your code.

However, this strategy can slow down queries:

While JOINED works well for polymorphism, be aware of its impact on query speed when your hierarchy grows.

TABLE_PER_CLASS

With the TABLE_PER_CLASS strategy, each class has its own table—just like in the JOINED strategy. But here, every child table also includes all the columns of the parent class. In other words:

To use this strategy, put the annotation on your root entity:

@Getter
@Setter
@ToString
@Accessors(chain = true)

@Entity
@Table(name = "products")
@DiscriminatorValue("P")
@DiscriminatorColumn(name = "product_type", discriminatorType = DiscriminatorType.CHAR)
@Inheritance(strategy = InheritanceType.TABLE_PER_CLASS)
public class ProductEntity {
    @Id
    @GeneratedValue
    private Long id;
    private String name;
    private double price;
}

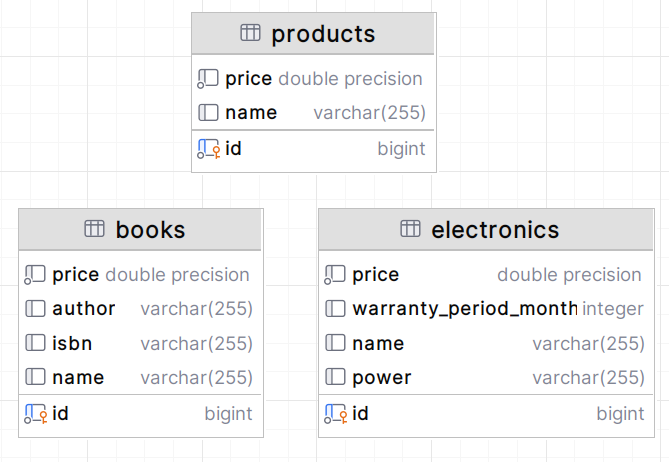

Now, BookEntity and ElectronicEntity each get a separate table. Those tables include their own fields plus all fields from ProductEntity.


With the TABLE_PER_CLASS strategy:
