Distributed Tracing

Distributed tracing helps us understand how requests and messages travel between microservices in a system. It is very useful when we need to find problems or delays in a system made of many microservices.

Problem

In systems with many microservices, it can be hard to know what happens when a user makes a request. Some common problems are:

Finding the root cause of a failure: Imagine users report an error when trying to buy a product. How do we know which microservice caused the error?
Tracking a specific entity: Suppose a user has a question about order #12345. How can we find all log messages from all microservices involved in processing that order?
Identifying delays: If a system is responding slowly, how can we find which microservice in the chain is causing the delay?

Solution

To solve these problems, we use correlation IDs. A correlation ID is a unique identifier that links all requests and messages for one action or user request.

Here’s how it works:

When a new request comes in, the system generates a unique correlation ID.
Every microservice that processes this request includes the correlation ID in its logs.
If a microservice uses information about a specific business entity (like a customer ID or an order ID), we can also connect the correlation ID to that entity.

This way, we can:

Find all log messages related to a specific request or entity.
Measure how long each microservice takes to process the request, helping identify slow points in the system.

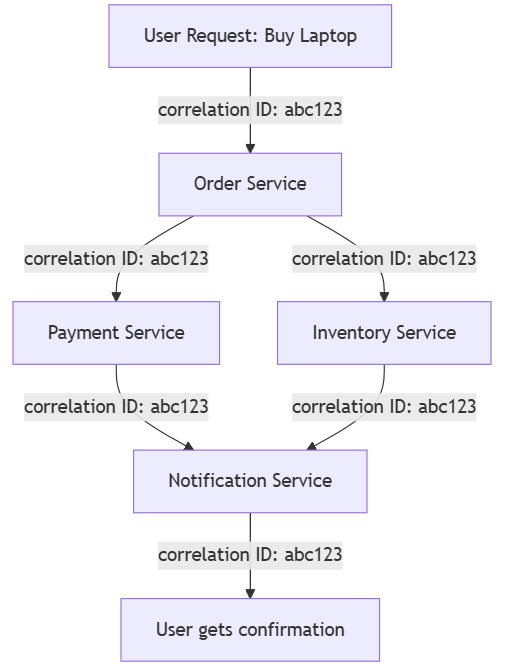

Example: A user wants to buy a laptop:

The request enters the Order Service and gets correlation ID abc123.
The Payment Service and Inventory Service also log the same correlation ID.
If the user reports a problem, support can search logs using abc123 and see all steps in the request.
If the payment took too long, timestamps in the logs will show which microservice caused the delay.

Solution Requirements

To implement distributed tracing effectively, we need to:

Assign correlation IDs to all incoming requests and new events. Usually, this is done in a request header.
Propagate the correlation ID in every outgoing request or message from a microservice.
Include the correlation ID in all logs in a standard format, so the central logging system can find and link related events.
Record timestamps when requests, responses, or messages enter and leave each microservice. This helps analyze delays in the system.
